11-998
11-990
11-933
11-932
11-910
11-904
11-902
11-900
|
 |
11-853
11-852
11-851
11-850
11-833
11-802
11-801
|
Single Pole Connectors
11850-11853 and 11762-3, 11771-3
This rugged Single-pole Connector has a continuous duty capacity of 300 amps,
and is ideal for almost all heavy-duty power applications- on trucks,
agricultural equipment, utility vehicles, winches, light air craft ground
equipment, etc.
The connector is interchangeable with competitive brands.
Provides power for auxiliary equipment from battery.
|
11-898
11-896
11-893
|
RV OEM
Style Sockets & Wiring Assemblies
11893, 11898
- Socket, bracket, interlocking connector and harness assembly, and wire
leads color
coded
to RVI standards.
Interlocking connector that seals out moisture, eliminates loose wiring, and
forms weather-tight, non-corrosive assembly.
Includes mounting hardware and installation instructions.
7-Way Connectors and Sets
|
11-797
11-796
11-786
11-785
11-781
11-780
11-779
11-777
11-773
11-771
11-764
11-763
11-762
11-761
11-739
11-737
11-736
11-735
11-733
11-732
11-730
11-729
11-724
11-723
11-721
11-720
11-710
11-704
11-702
11-700
11-647E
11-627
11-626
11-617
11-616
11-614
11-613
11-609
11-608
11-607
11-606
11-605
11-604
11-603
11-602
11-600
11-502
11-501
11-500
11-410
11-409
11-408
11-405
11-404
11-403
11-402
11-400
11-200
|
Heavy Duty 7-Way Plugs and Accessories
(11700, 02, 04, 10, 62-64, 900, 902, 904, 910)
-
Meets and exceeds all standards of S J560.
- Floating pins for ease of alignment and maximum contact.
- Will accept the widest range of wire gauges, from #16 wires to #8 ground
wire.
- Interchangeable with all competitive ATA types.
- Tapered design fits comfortably and conveniently for easy hand-position
pull. Jumbo finger pull grips and two hang-up holes.
- High-impact cycolac interior with extended lip for easy removal and
replacement.
- Solid brass terminal screws.
- 40 amps continuous duty @ 6-28 VDC.
- WeatherBeater seal accommodates
.450 minimum wire dia.
|
|
 7-Way
Sockets and Accessories
117##
- Meets and exceeds all standards of SJ560 (Solid Pin Sockets only)
- Floating pins for ease of alignment and Maximum Contact
- Self grounded. (Die Cast only)
- Optimum slant mount and drain slot rid housing interior of accumulated
moisture.
- Will accept the widest range of gauges from #16 wires to #8 ground wire.
Ground Terminal Pin #1 will accept #14 gauge min. to #8 gauge max. Other
terminals will accept #16 gauge min to #10 gauge max.
- 40 amps continuous duty @ 6-28 VDC.
- Self grounded (Die Cast only) to #1 Ground Terminal
- Stainless steel spring
- Recommended
Mounting
Hole = 2" Diameter
Interchangeable with all competitive makes.
|
|
 7-Way
Sockets with Replaceable Circuit Breakers
(11732, 33, 35,
36, 37, 39, 49, 801-2)
Base plate and back plate made from rugged glass filled nylon to resist
breaking. Bottom lip has been extended to allow for better plug and cable
support. Drain hole has been incorporated into the housing to allow accumulated
moisture to escape. Will accept hte widest range of wire gauges from #14 wire to
#8 ground wire. Will accept all plugs conforming to S.A.E. J560 specifications.
Ground may be tied to any screw mounting the rear terminal plate. Designed to
provide easy serviceability of circuit breakers. Recommended that positive feed
be attached to aux post on circuit breaker.
|

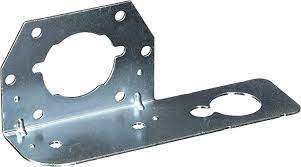

 6-Way
Connectors and Accessories
11600-11617
- Three socket versions to choose from: Exposed, Rubber boot coverage, or
Die-cast shell coverage.
- High impact interiors of super strength keyed for proper assembly.
- Brass terminal pins for best conductivity, terminals accept up to #12
gauge wires.
- Plug available with or without cable guard.
- Replaceable plug interior helps keep down maintenance costs.
- Plated steel cable guard prevents cable chafing.
- Two 1/4" mounting holes on 6-way sockets, 2-7/8" on center.
Mounts through 1-3/8" hole.
|
|
 5-Way
Connectors
11500-11502
Polarized, chrome plated housing, spring loaded cover. Durable interiors. Split
brass contact for maximum current. Mounting holes 1-3/4" on centers.
|
|
4-Way
Connectors
11400,
11402-11404
Latest design die cast 4-pole unit incorporating many new and improved features.
- Extended exterior and socket conceals terminals.
- Unique cable clamp prevents chafing - gives more cable support - saves
installation time.
- Integral finp-pr erins for nositivp null - never shakes loose.
- Stainless steel spring.
- Dust and water resistant.
- Polarized.
- Heavy duty 6-way & 4-way terminals accept up to #12 gauge wire.
- Two 1/4" mounting holes on 4-way sockets, 2-7/8" on center.
Mounts through 1-3/8" dia. hole.
|
|
 4-Way
Connectors Chrome Plated
11408-11410
12-24 Volts, 20 Amp, Polarized. Chrome Die Cast ABS Plastic High impact green
insulators and split brass contacts.
|
|
Connectors
11200(, 300, 405) and 12200(, 402, 404, 406, 600, 601)
Molded Inline connectors are an economical means of connecting electrical
systems. Wires are color coded for easy installation. Standard 18 gauge
automotive wire, 12" long, except where noted. Polarized to insure proper
connection. Molded case offers all-round weather protection. 12 Volts, 15 Amps.
|
12-200
12-300
12-400
12-401
12-402
12-405
12-403
12-404
12-410
12-411
12-412
12-413
12-414
12-415
12-417
12-418
12-419
12-421
12-422
12-423
12-424
12-425
12-426
12-500
12-501
12-600
12-601
12-610
12-611
12-625
12-700
12-701U
12-702
12-703
12-704
12-705
12-706
12-707
12-709
12-710
12-711U
12-712
12-716
12-717
12-718
12-719
12-720
12-723
12-724
12-725
12-726
12-727
12-728
12-729
12-741
12-742
12-743
12-744
12-750
12-751
12-752
12-777
12-800
12-801
12-811
12-812
12-905
12-906
12-907
|
RV
7-Pole Connectors Heavy Duty & Adaptors
12700-12710
RV Connectors Heavy Duty include:
- 7-Way Connectors and Sets
- 9-Way Connectors and Sets
- Connector Adaptors
|
